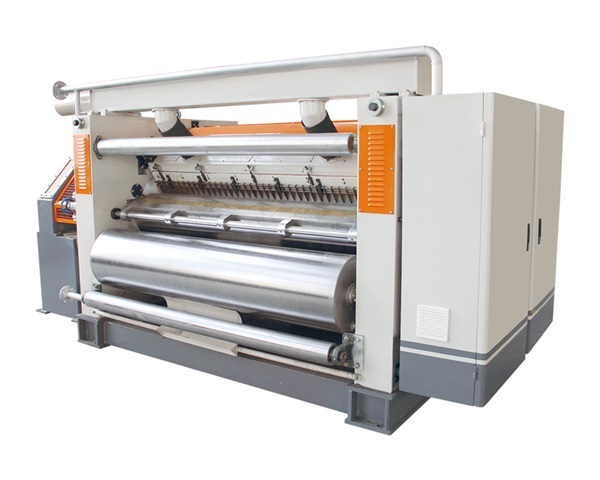

◆  SF 320C Design Speed: 150m/min

◆ Effective width: 1400mm-2200mm

◆ Corrugated roller:φ320mm

◆ Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.(optional)

◆ Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

◆ Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.

◆ Bearing of corrugated and pressure roller adopt high temperature lubricate grease.

◆ Glue parts auto supply glue circularly.

◆ The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness is above HV1200,the surface be dealing

with tungsten carbide.

◆ The glue part surface are treated by special mesh snicked and chromeplated.

◆ Manud or electric insulation glue device.

◆ Glue part can be running independently or non-independently while stopped.
