◆ 405C1 Design Speed: 220m/min 360C1 Design Speed: 200m/min

◆ Effective width: 1400mm-2500mm

◆ Corrugated roller:φ405mm φ360mm

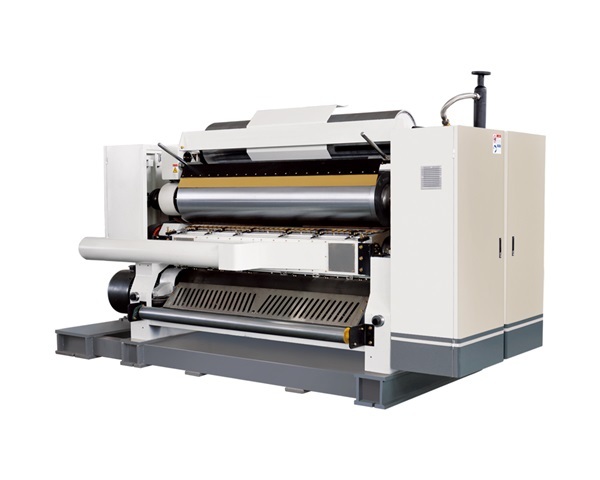

◆ Fingerless vacuum suction type single facer, the upper and lower corrugated rollers are made of high quality 48 CrMo alloy steel, undergoes heat treatment, the hardness is above HV1200. The

surface is well treated by grind and plated tungsten.

◆ With preheater for liner paper and steam spray device for medium paper.

◆ Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.

◆ Glue part separate from the guide rail, it is easy to wash and maintain.

◆ Pressure roller gap use pressure sensor detect, numeric display.

◆ Glue gap adjust with the producing speed automatically.

◆ When the machine stop, pressure roller lift. Pressure roller use pneumatic drive, batch-type rotation. Pressure roller be heated evenly，it could reduce distortion and cardboard wasting.

◆ Adopt cog belt driving which could reduce noise and reduce maintenance costs.

◆ Adopt electric insulate glue device, glue part operate independently when main machine stop to avoid glue use up. Electric adjust glue and numeric display.
